CIG > Products > HVAC/R Units > Air Cooled Condenser (ACC)

HVAC/R Units

Air Cooled Condenser (ACC)

Application

Air Conditioning
Refrigeration
Air Cooled Condenser 1
Air Cooled Condenser 2
Air Cooled Condenser 3
Previous
Next

Air Cooled Condenser or ACC is a direct dry cooling system where steam is condensed inside the fins and tubes. Cooler ambient air will then remove the heat from the fins and tubes.

Benefits
  • Customized design for any HVAC/R applications
  • Excellent heat reject performance


Condenser Frame Kit Air cooling for cold rooms, freezers, walk-in cabinets
There are both medium temp and low temp.
Quiet, energy-saving, durable, high efficiency Can be used with many types of refrigerants.
such as R-404A/R507 , R-134a , R-407C and R-22 etc.

Thermal coil / CONDENSER COIL

Air-cooled type, coated fins
special anti-corrosion Extend the service life and with a period
The distance is only 12 fins per inch, making it easy for wind to pass through.
good heat change and causing dirt to clog up more slowly
The inner grooved type of copper tube increases the efficiency of
heat exchanger

Fan / FAN

Fan type Axial Fan External Rotor Motor
good heat dissipation
Frame / BODY CASING
The CDU frame is made entirely of aluminum. powder coated
(Aluminum structure with Powdered Coating)

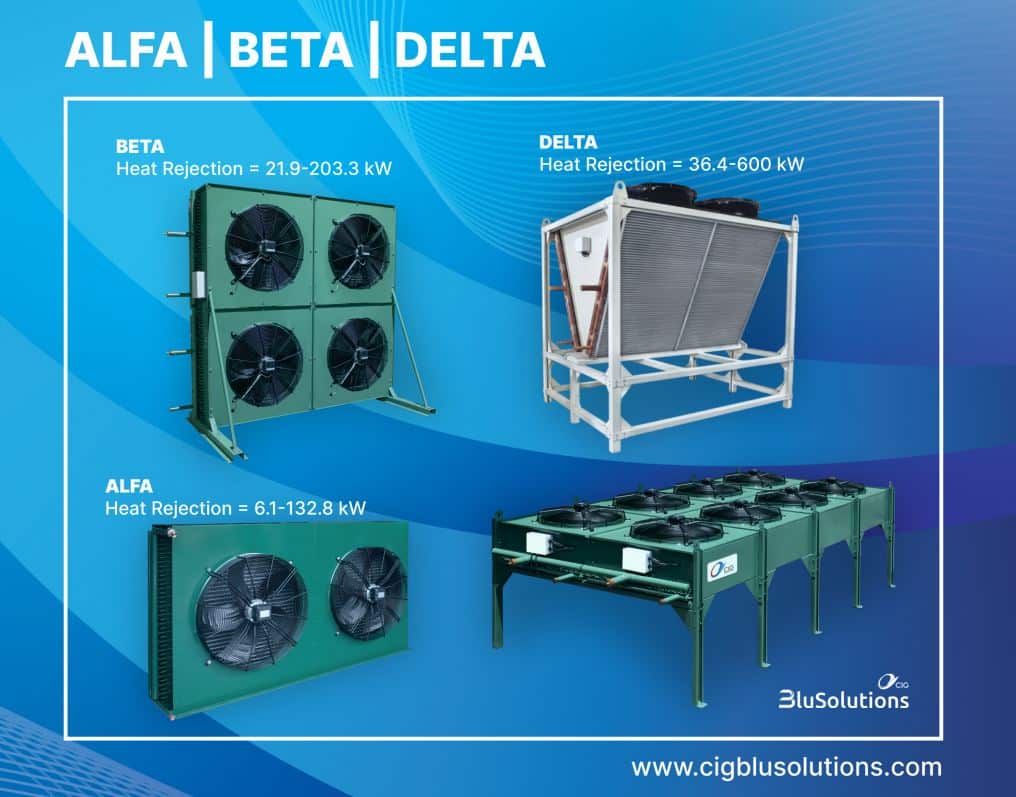

Model | ALFA, BETA & DELTA

ALFA small model size 1-4 fans without stand
BETA medium size 1-8 fan with stand assembly.
DELTA, large model, size 1-10, the fan that assembles the coil panel as
V-shape to optimize heat dissipation.

ACCESSORIES / OPTIONS

Customers can order production or add equipment in addition to
from standard equipment as follows:
• Stainless steel frame.
• Electrical devices such as magnetic, fuse, phase
protection, circuit breaker and thermal
overload relay etc.
• Base pedestals or pedestals for hoisting.

Special option

D-Coat UV
increase the efficiency of corrosion protection from chemicals and
Salt, tested to ASTM B-117 Salt.
Spray test 10,000 hours
*Note: This is an additional option. not included in this catalog




Download
Brochure
Download File CIG_ACC-Standard-20220512-1.pdf – 18 MB
Download File CIG_CCU-CCUP-CAC-CACP-3-1.pdf – 4 MB
