CIG > Products > HVAC/R Units > Unit Cooler

HVAC/R Units

Unit Cooler

Application

Air Conditioning
Refrigeration
UCL 1

Unit Cooler is the main part of any refrigeration system. Our Unit Cooler–cased with aluminum–houses the motors and low-noise fan blades. The whole unit was designed to achieve the highest air throw to create the most efficient ventilation system that keeps even the furthest corner of the room refrigerated. Most importantly our unit cooler will help you minimize your energy consumption.



Guaranteed heavy air flow with no ice problems

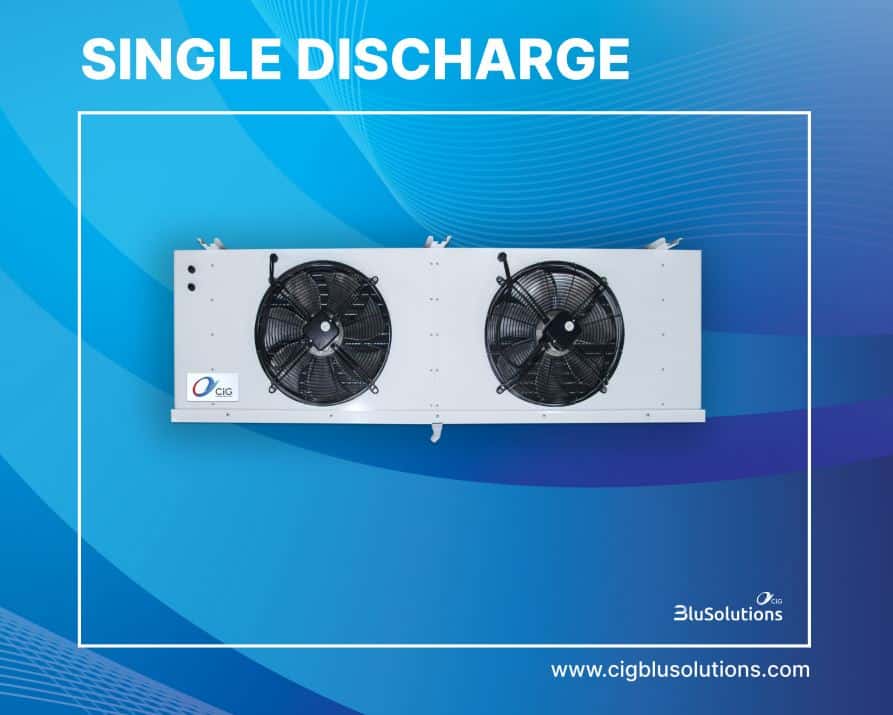

Unit Cooler – Single Discharge

Cooler unit set / Evaporator unit for cold room, freezer, walk-in cabinet, designed to support the use of
cold room work Freezer room and laboratory (LAB) temperature from -30 ℃ to +25 ℃.
Quiet, energy-saving, durable, high efficiency Can be used with a variety of liquids
such as R-404A , R-134a , R-407C and R-22 etc.

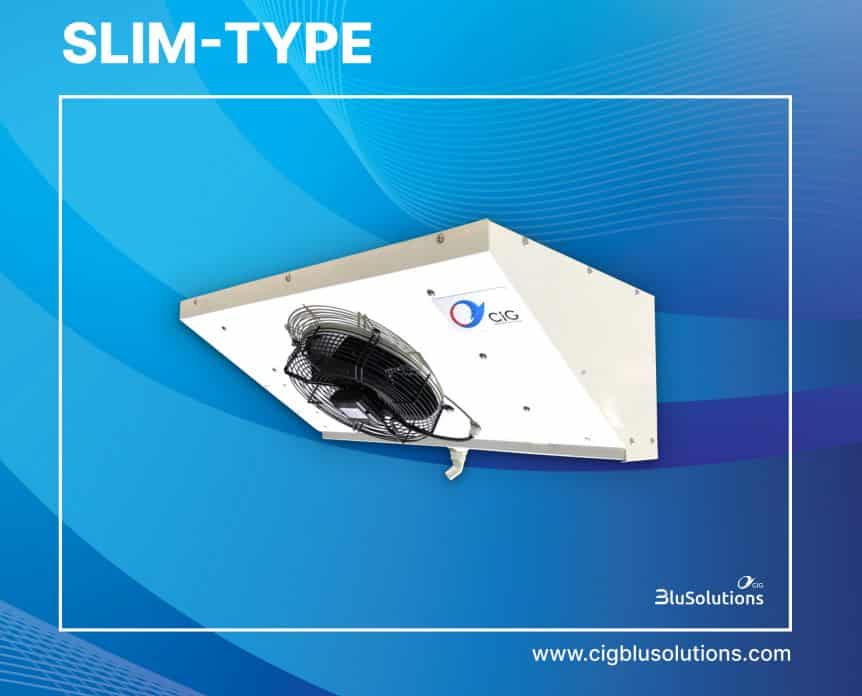

Unit Cooler – Slim Type

Designed to allow you to use more space in the cold room than ever before.
Cooler unit set / Evaporator unit for cold room, freezer, walk-in cabinet, designed to support the use of
cold room work Freezer room and laboratory (LAB) temperature from -30 ℃ to +25 ℃.
Quiet, energy-saving, durable, high efficiency Can be used with a variety of liquids
such as R-404A , R-134a , R-407C and R-22 etc.

Evaporative Coil / Evaporative Coil
There are fin spacing from 4.5 mm., 6.0 mm. and 7.0 mm.
To be suitable for use in different temperature ranges to work at full efficiency. Based on more than 40 years of production experience and designed by a standard calculation program.
international

Fan
Fan type Axial Fan External Rotor Motor
good heat dissipation There are number of fans from 1-4 fans.
Propeller sizes start from 300 mm to 500 mm.

Casing
The unit cooler frame is made of aluminum structure with Powdered Coating for durability in use.

Heater
Heating device for defrosting Available in coil and drain pan

Drain Tray
Specially designed to increase water flow efficiency faster. and helps prevent effluent from returning to form ice in the drainage tray. for negative temperature rooms

ACCESSORIES / OPTIONS
Customers can order production or add equipment. In addition to the standard equipment are as follows:
• Stainless steel frame.
• Special fin coating (D-Coat) to increase the efficiency of
Better corrosion protection
• Stainless steel fan

Special option
D-Coat
Enhanced protection against corrosion from chemicals and salts. Passed the ASTM B-117 Salt Spray test 10,000 hours.
*Note: This is an additional option. not included in this catalog





1 Year
Download
Brochure
Download File CIG_UNIT-COOLER-SG_20220301-1.pdf – 2 MB
Download File CIG-UNIT-COOLER-SL.pdf – 4 MB
